STAINLESS STEEL WIRE MESH AND FILTER - Thai Prasit Textile Co., Ltd

We are a recognized manufacturer of Stainless Steel Wire Mesh and Filters, and are capable of producing all types of stainless steel wire mesh. Being the most popular type of woven screen, its strength and resistance to corrosion, rust and many chemicals has made them suitable for a wide range of applications in many different industries.

They are durable and can withstand high temperatures. Our Thai Prasit Textile stainless steel wire mesh is available in rolls
We also customieze fabricated filters of various shapes and sizes according to customer's requirements and specifications. Steps in the fabrication process include slitting, Cutting, Welding, Framing with either aluminium or stainless steel and ultrasonic cleaning

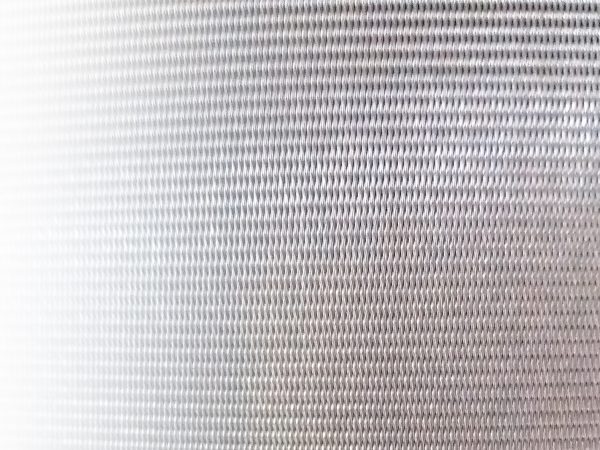

Plain Weave Stainless steel Wire Mesh

This weave design is the most common type for woven wire mesh. The mesh is formed by spacing the warp and weft wires at right angles. When each weft wire and warp wire pass over one and under the other at equal spacing, they form a square.

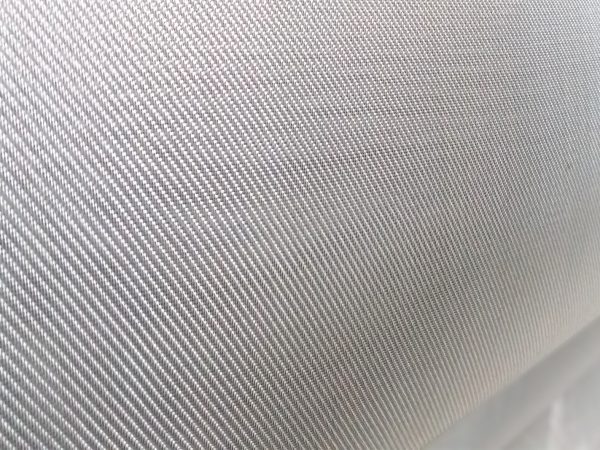

Twill weave Stainless Steel Wire Mesh

Twill Weave Stainless Steel wire mesh is where two lines of the warp and weft wires are interweaved alternately. With the same wire diameter and opening size, the twill weave mesh is less firm than the plain weave mesh.

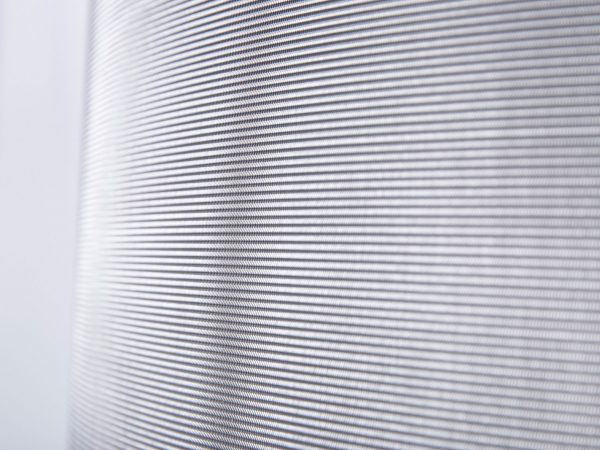

Twill Dutch Weave Stainless Steel Wire Mesh

The Twill Dutch Weave is a combination of Twill Weave and Dutch Weave. The weft wires are passed alternately over and under two warp wires forming a fine mesh in one direction and a coarse mesh in the other.

Plain Dutch Weave Stainless Steel Wire Mesh

The Plain Dutch Weave wire mesh is woven similarly as in Plain Weave, except that the warp wire is bigger and broadly spaced than the weft wire which is relatively finer.

Auto Screen Filter or Screen Belt Filter

Reverse Twill Dutch Weave is similar weaving to Twill Dutch weave except the warp and weft wires are reversed. The warp wire is smaller and closely spaced than the weft wire which is relatively bigger.

Stainless Steel Wire Mesh Finished Products / Custom-Made

Our well-equipped workshop with its extensive tooling and fabricating machinery enables us to offer standard and customized products.
